Arica
Products Fireplace stoves Arica

Arica

Fireplace stoves

Fireplace stoves

Arica

Main parameters:
expand roll
140 kg Weight
11 kW Rated output
150 mm Exhaust outlet diameter
74 % Heating efficiency
330 °C Exhaust gas temperature °C
110 m2 Heating area (m2)
746x722x487 mm Dimensions (height, depth, width)
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
2 years Warranty
Parameters ECODESIGN
expand roll
64 % Seasonal energy efficiency at 13% O2
109 Organic gaseous carbon (OGC) emission at 13% O2
44 Particle matter (PM) emission at 13% O2
92 Nitrogen oxide (NOx) emission at 13% O2
1871 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Afterburning - reduces hazardous gases emission into the environment
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
Side glass panel - increases vision of fire.
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

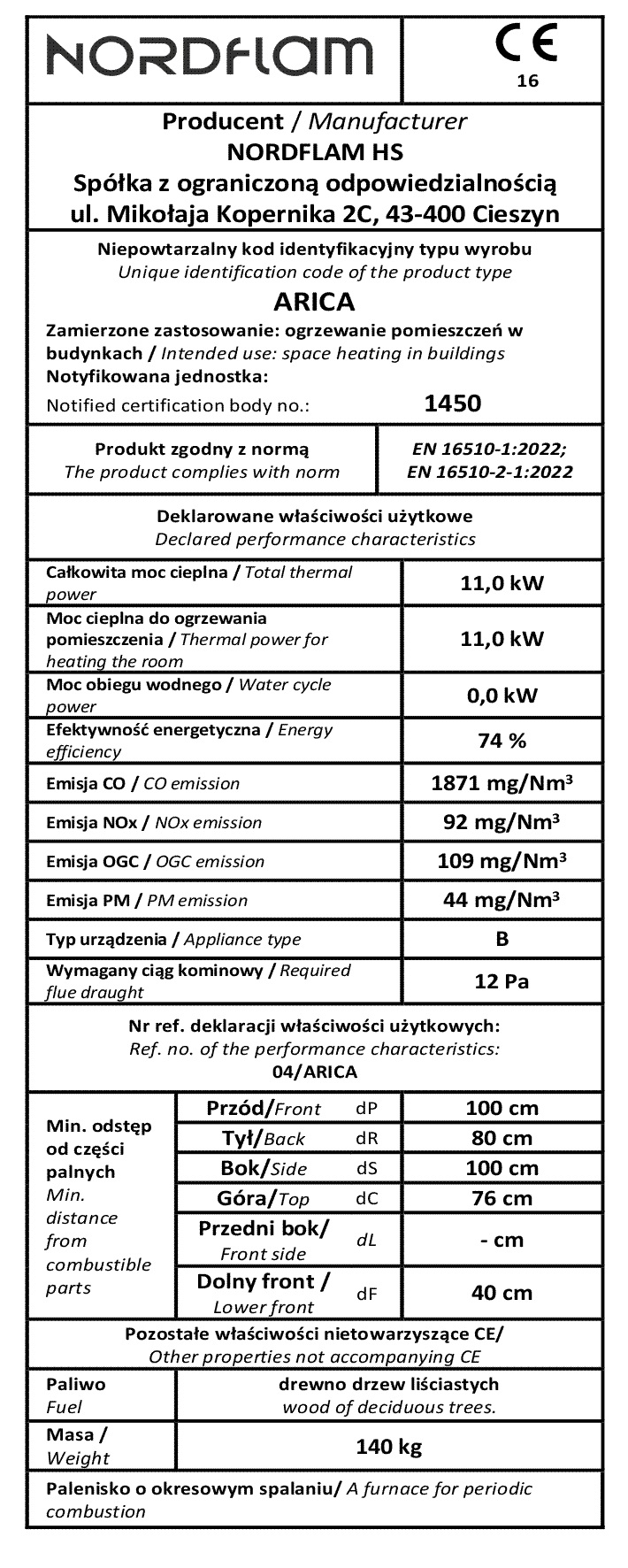

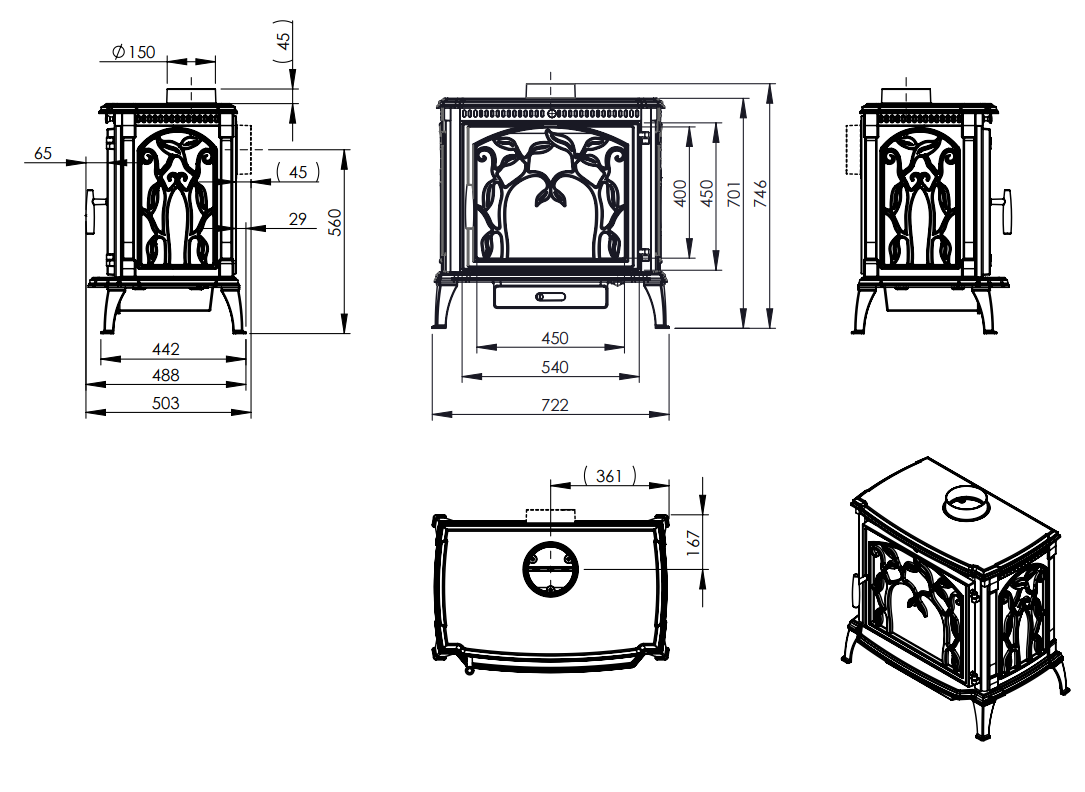

declaration of performance and conformity energu efficiency class manual product sheet mechanical drawing rating plate technical data
